gfm-render
Reviewed
at commit a209ad5

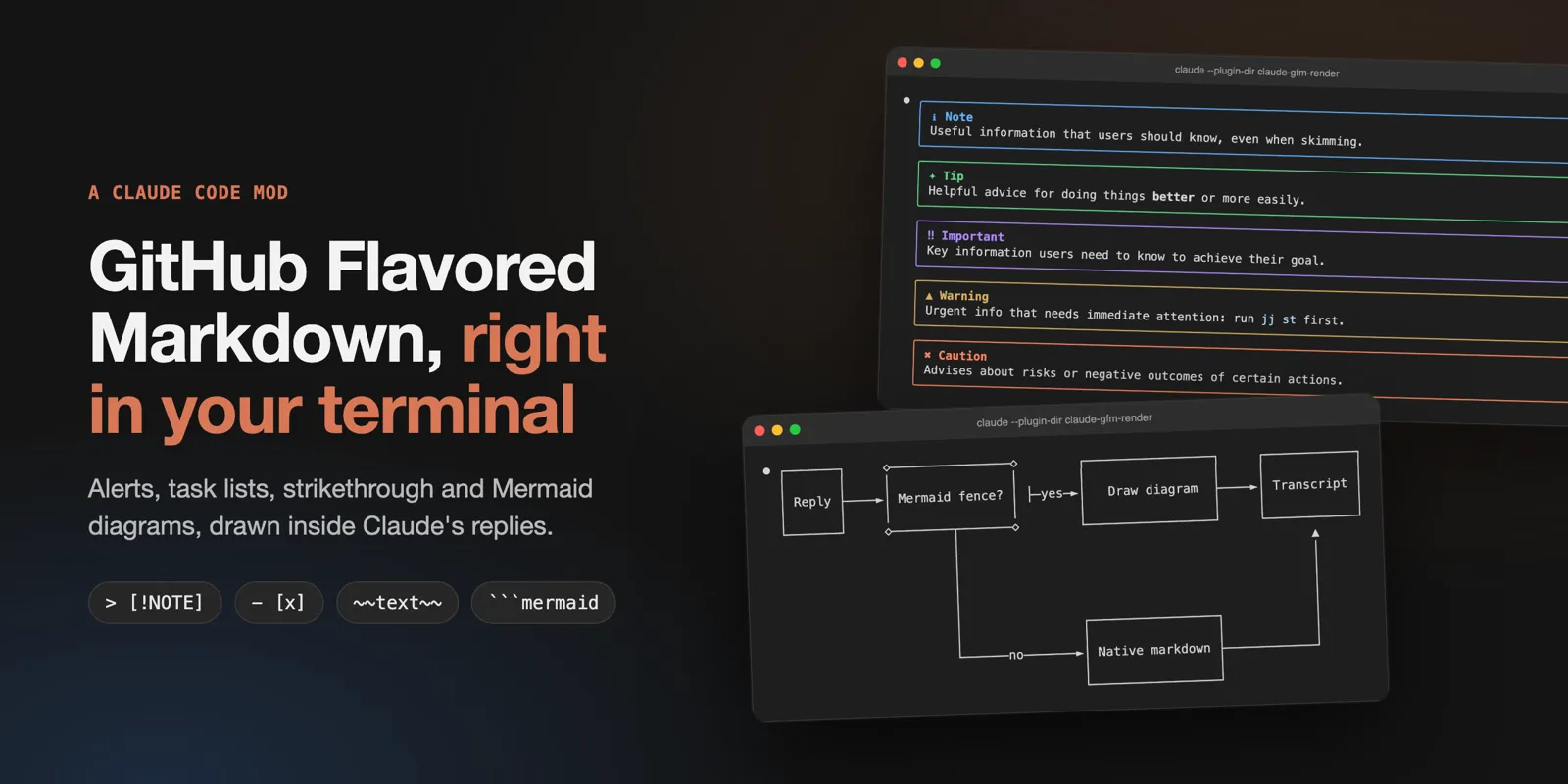

Draws GitHub alerts, task lists, strikethrough and Mermaid diagrams in Claude's replies, as box art in the terminal and SVG on the desktop.
0 upvotes
Log in to upvote or save- Made by
- briangtn
- Pinned commit
-
a209ad5a0ec35c0813d2d80ab62b596140b0c807 - What we checked
-
Redraws Claude's replies on screen: GitHub-style alert boxes, checkbox task lists, strikethrough and Mermaid diagrams (as text art in the terminal, as an image elsewhere). On the desktop it runs a bundled local node script to draw each diagram. At session start it also adds a short note telling Claude it can write these formats, unless you switch that off. It makes no network calls.
Review details
Static review of the source at the pinned commit; not run. Registers one ui.render handler for AssistantMessage (reads the reply text, splits out alert and mermaid blocks, rewrites task lists and ~~strike~~ for the terminal surface only) and a SessionStart shell hook that cats GFM.md into Claude's context unless the promptHint option is false. For non-terminal surfaces it runs 'node renderer/svg.mjs' through $.process.run with the diagram source on stdin and a 10 second timeout, caches the SVG per source, strips the web-font @import and injects a light/dark style block. svg.mjs and the vendored beautiful-mermaid.mjs (1.5 MB, minified, built from beautiful-mermaid 1.1.3 plus elkjs by scripts/build-vendor.sh) were not read line by line; grep found no child_process, fs, fetch, XMLHttpRequest, WebSocket, eval or Function use, only the standard elkjs worker shim and a Google Fonts URL inside the SVG output template, which themeSvg removes. hooks/vendor/mermaid-ascii.js (83 KB, minified) is imported in-process; the bundle copy was truncated, so I checked the repository file at the same commit with the same greps and found no network, process or file APIs besides a read of process.stdout/env for color detection. A per-diagram show-code toggle is kept in plugin state. No prompts, tool calls or files are read.
- What it uses
-
- Reads your prompts: no
- Sees tool calls: no
- Blocks or changes tool calls: no
- Reads or writes files: no
- Runs programs on your machine: yes
- Calls the model (uses tokens): no
- Sends data over the network: no
- Stores data: no
- Shows something on screen: yes
- Hooked events
GitHub Flavored Markdown in the transcript: alerts (> [!NOTE]), task lists, strikethrough and Mermaid diagrams
